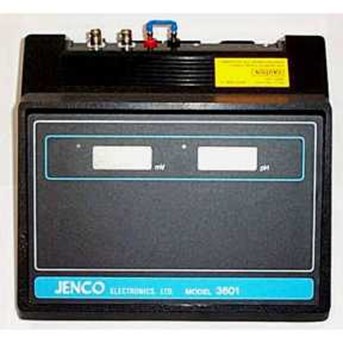

JENCO pH, ORP Benchtop Meter Model 3601

Description pH/ ORP controller with dual SPDT Hi/ Lo relays, manual set points via potentiometers and calibration via potentiometers with a voltage/ recorder output and has an internal pH/ ORP select switch and large bright red LED display uses a BNC input and spade lug screw type connector block requires a Pt-100 ATC or a simulation resistor for temperature. * Dual function pH & ORP * Dual LCD displays * Dual 115v ac power on/ off relays * Dual standard ac electrical sockets * Auto temperature compensation * Water & corrosion proof case * Calibration & set points set via screw type potentiometers Specifications pH Range : 0.00 to 14.00 pH Resolution : 0.01 pH Accuracy : 0.02% ± 1 LSD ORP Range : -1999 to 1999 mV Resolution : 1 mV Accuracy : 0.05% ± 1 LSD # Analog Output * Relays output control range: Over span of 0.00~ 14.00ph & ± 1999mV * Relay hysteresis pH/ ORP: ± 0.1ph/ ± 10 mV General * Input impedance: > = 10^ 12ohms * Temperature compensation: Auto 0 to 45° C * Temperature sensor: Pt-100, a= 0.00385 * Temperature connector: Banana plugs * Display: 12.7mm high LCD * Power: 115VAC ± 15% , 60 hz * Weight: 1200 gm * Dimension: 240 x 250 x 100 mm
